Welch Vacuum 2546B-01 Standard Duty Pump, 1-Head, 45 LPM, 60 Torr, 115V Clearance In China

Features

One-head WOB-L-style piston pump with intake and exhaust catch jars for use in vacuum or pressure applications with gel dryers, concentrators, and rotary evaporators 46 liter per minute (LPM) free air displacement with vacuum to 60 Torr.

Manually adjustable vacuum and pressure levels with gauges Oil-free pump for operation without oil misting and contaminated oil disposal. 1/4 HP motor accepts 115V, 60Hz input power.

Description

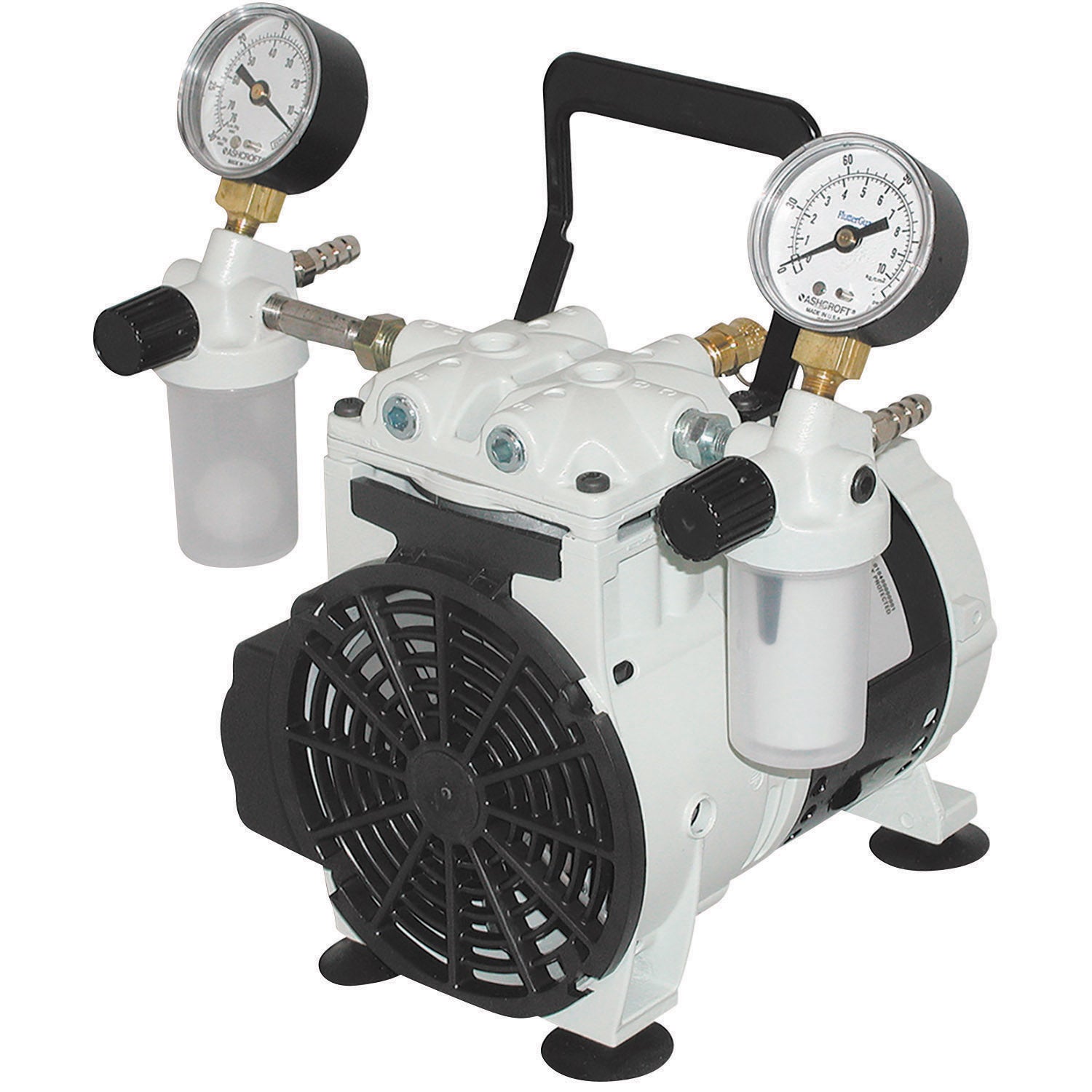

The Welch Vacuum 2546B-01 one-head WOB-L-style piston pump has an 46 liter per minute (LPM) free air displacement with vacuum to 60 Torr and is suitable for use with gel dryers, concentrators, and rotary evaporators in non-corrosive environments. The vacuum/pressure pump has intake and exhaust catch jars for collecting condensation, vacuum and pressure gauges, and manually adjustable vacuum and pressure levels. It is driven by a 1/4 HP motor that accepts 115V, 60Hz input power. It connects to 3/16″ inside diameter vacuum system tubing (sold separately).

Welch-Ilmvac, a subnavision of Denver Gardner, manufactures vacuum pumps, systems, and components for industrial and research applications under the Welch and Ilmvac brand names. Denver Gardner, founded in 1859, is headquartered in Milwaukee, WI.

CLICK HERE TO VIEW THE 2546B-01 MANUAL

EXPLODED VIEW AND REPAIR KITS

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Wetted Parts

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

304 Stainless Steel, Aluminum, PTFE

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Free-Air Capacity (CFM)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

1.6

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Free-Air Capacity (LPM)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

45

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Free-Air Capacity (LPH)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

2700

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Max Flow Rate (CFM)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

1.58

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Max Flow Rate (Liters/min)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

45

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Max Vacuum (in Hg)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

27.6

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Max Vacuum (mbar)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

78.6

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Max Vacuum (mm Hg)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

59

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Max Vacuum (torr)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

59

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Port Size

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

1/4″ hose barb

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Max Temperature (° F)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

104

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Max Temperature (° C)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

40

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Duty Cycle

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

Continuous

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Power (VAC)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

115

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Power (amps)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

3.6

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Power (Hz)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

60

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Motor Type

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

Permanent split capacitor

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Height (in)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

10

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Length (in)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

8

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Height (cm)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

25.4

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Length (cm)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

20.32

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Height (mm)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

254

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Length (mm)

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

203.2

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Motor

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

hp1/4

<td style="border: 1.0000pt solid #DBDBDB; background: #EDEDED;" valign="center"

Description

<td style="border: 1.0000pt solid #DBDBDB;" valign="center"

Standard Duty Dry Vacuum Piston Pumps, 45 L/min, 115 VAC
