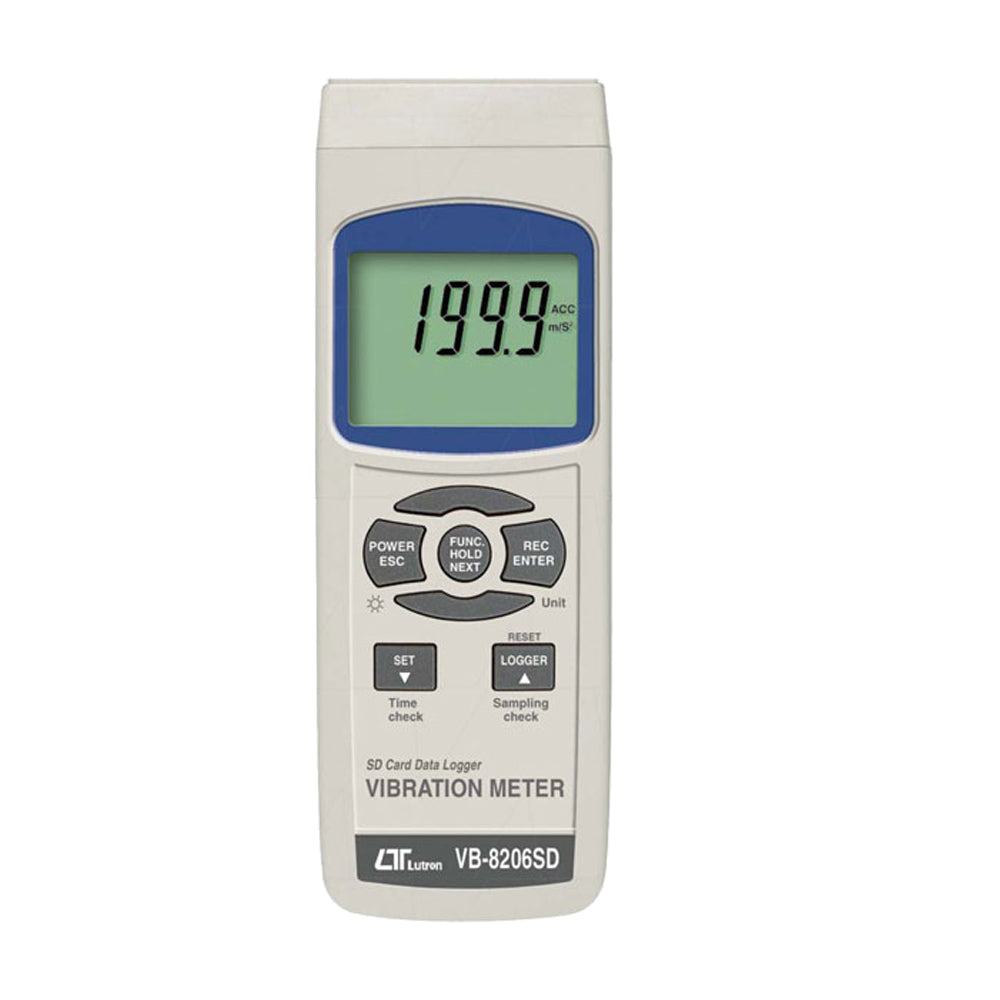

Vibration Meter Real Time Data Logger + SD Card

Overview

Vibration Meter Real Time Data Logger + SD Card. Vibration Meter with sensor. Acceleration and Velocity SD Card real time data logger vibration meter. Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed. Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/ hour/minute/second) to the Excel directly, then user can make the further data or graphic analysis by themselves. Professional vibration meter supply with vibration sensor & magnetic base, full set.

Key Features

• Metric & Imperial display unit
• Acceleration, Velocity, Displacement measurement
• RMS, Peak value, Maximum hold measurement
• Maximum Hold reset button, Zero Button
• Wide frequency range
• Data hold button to freeze the desired reading
• LCD with green light backlight, easy reading
• Can default auto power off or manual power off
• Data hold, record maximum and minimum reading
• Microcomputer circuit, high accuracy

Technical Details

• LCD size : 52 mm x 38 mm LCD with green backlight (ON/OFF)
• Power by UM3/AA (1.5 V) x 6 batteries or DC 9V adapter
• RS232/USB PC COMPUTER interface
• Memory Recall – Maximum & Minimum value
• Operating Temperature – 0 to 50 C
