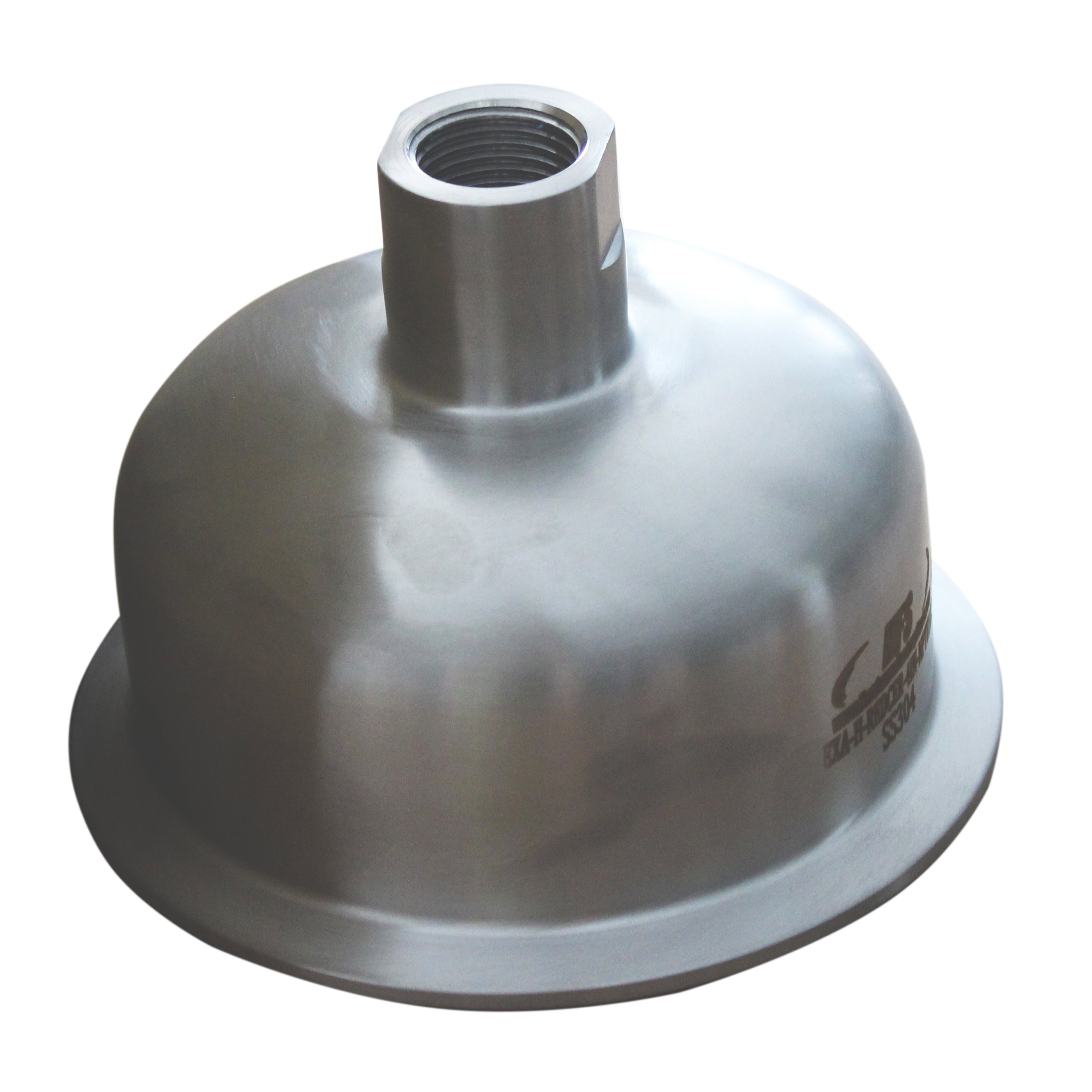

Tri Clamp To NPT Female/Male Hemispherical Bowl Reducers Reliable For Sale

Our tri clamp hemispherical bowl reducers are made from 304 stainless steel and come with a high-polish finish. Bowl reducers are much shorter than their concentric counterparts, and are especially helpful for large size differences like 6″ to 1/2″ NPT.

The downside of bowl reducers is that they don’t promote flow as well as concentric reducers, and can be a bottleneck for pressure.

These bowl reducers are very unique in that they don’t convert from tri clamp to tri clamp, but rather tri clamp to NPT fittings. They work great at the top or bottom of a spool, filter drier, manifold, or any other location to reduce the amount of fitting as much as possible.

Specification

• Product: Tri Clamp x NPT Bowl Reducer
• Connection Type(1): Tri Clamp
• Connection Type(2): NPT
• Connection Size: As Options describe
• Material: 304 Stainless Steel
• Working Temp.: 58°F~392°F
• Service: Air, Water, Oil, Most solvents and acids that are compatible with 304SS.

Feature

[Size]: Tri Clamp to NPT.

[Quality Materials]: The reducer is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: The Bowl Reducer fitting is designed to connect two pipes of different diameters that are along the same pipe axis.

[High Working Temp]: It is suitable for different media including water, gas, and oil with working at -58°F~392°F.

[Convenient organization and storage]: Packed in a small plastic bag with label.
