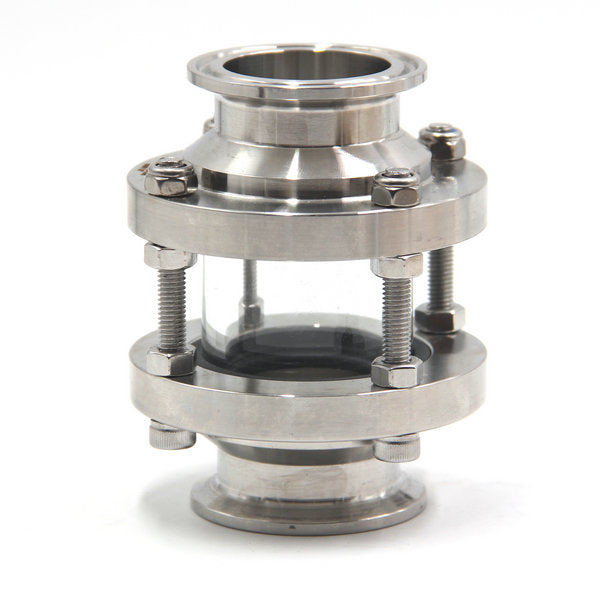

Tri Clamp Sight Glass – Short Version Clearance Sast

Parameter

• Material: 304 Stainless Steel, Tempered Glass
• Gasket Material: Silicone
• Connection Type: Tri Clamp
• Connection Size: 1.5″, 2″, 3″, 4″, 6″, 8″
• Max Pressure: 90PSI
• Temp. Range: -40°F~248°F

For more detailed size information, please check the HFS’s Tri Clamp Sight Glass Datasheet here.

Feature

[Quality Materials]: The Sanitary Straight Sight Glasses are constructed with Stainless Steel 304 housing, Tempered Glass and silicone seals which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: Full bore design, Sight Glass Flow Indicators provides a full 360 to observe fluid flow in any direction. Can be used in vertical or horizontal position. It is convenient to observe in the pipe the flow and reaction of liquid, gas, steam, etc.

[High Working Temp. & Wide Range of Applications]: The Sanitary Sight Glasses are designed for high purity applications used in the food, dairy, and pharmaceutical industries. It is suitable for different media including water and gas with working at -40°F~248°F.

[Convenient organization and storage]: Packed in a small carton with label.
