Tri Clamp Filter Ring for Filter Plate 304 Stainless Steel Outlet Online

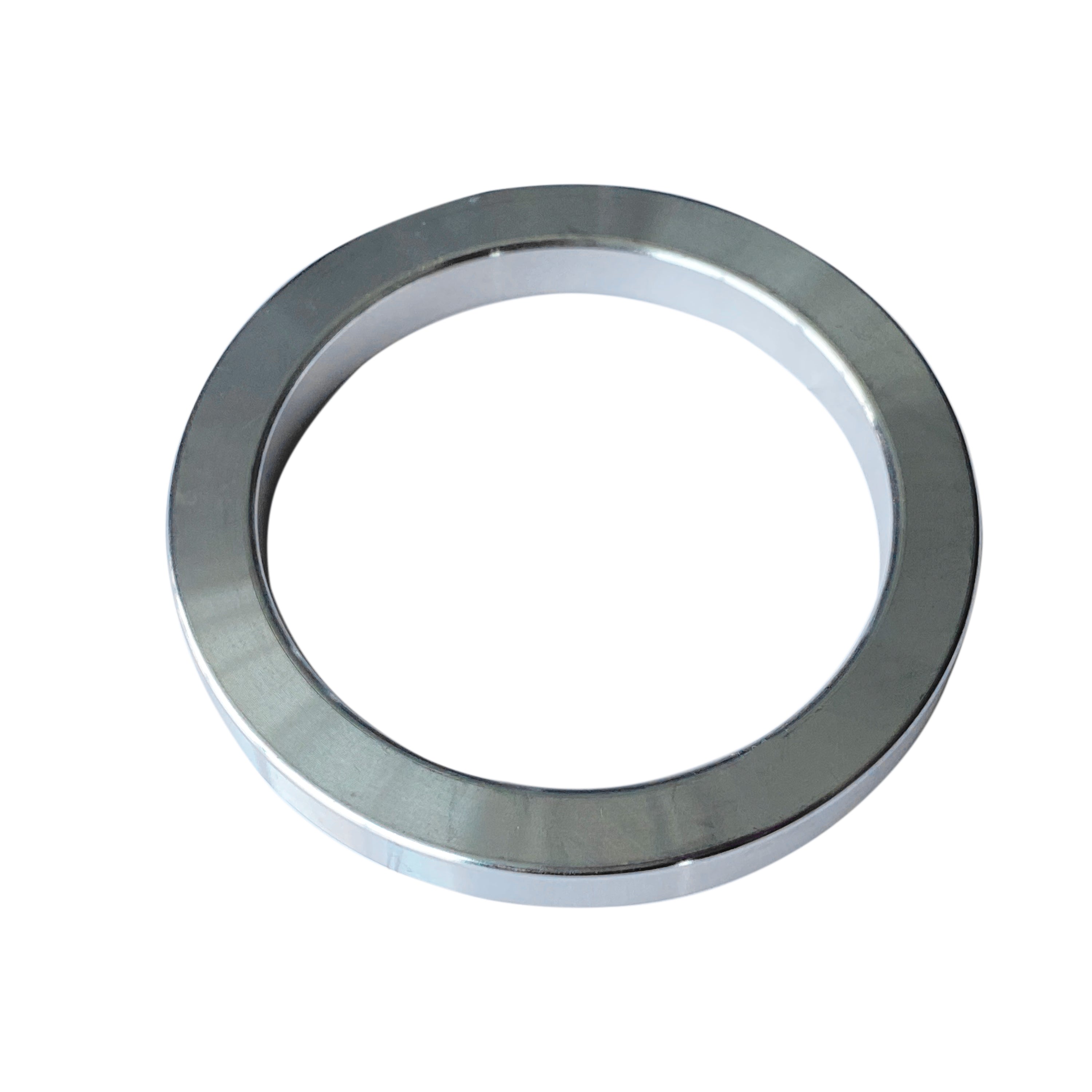

A retaining ring is the component which creates the seal for the inline filtration system. This simple but important tool fits flush within the filter plate, preventing any contaminants from going beyond the filter. This is used best with a filter plates and filter media.

<td

Size

<td

O.D.

<td

I.D.

<td

Thickness

mm	inch	mm	inch	mm	inch
1.5″	34	1.3	26	1.0	6	0.2
2″	47	1.9	35	1.4	6	0.2
3″	71.9	2.8	55.9	2.2	8	0.3
4″	96.6	3.8	80.6	3.2	8	0.3
6″	146	5.7	128	5.0	8	0.3
8″	197	7.8	173	6.8	10	0.4
10″	247.8	9.8	223.8	8.8	10	0.4
12″	299.8	11.8	275.8	10.9	10	0.4
Dimensions and pressures for reference only, subject to change.

[Size]: 1.5”, 2”, 3”, 4”, 6”, 8”, 10”, 12”. Density (mm): 8

[Quality Materials]: The Retaining Ring is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: The Retaining Ring is designed to fit with specific spool and tri-clamp, the perforated plate holds the gasket in place and prevents any screen displacement.

[High Working Temp. & Wide Range of Applications]: The filter plate ring allows the user to stack different levels of filtration inside their system. It is suitable for different media including water, gas, and oil with working at -58°F~392°F.

[Convenient organization and storage]: Packed in a plastic bag with label.
