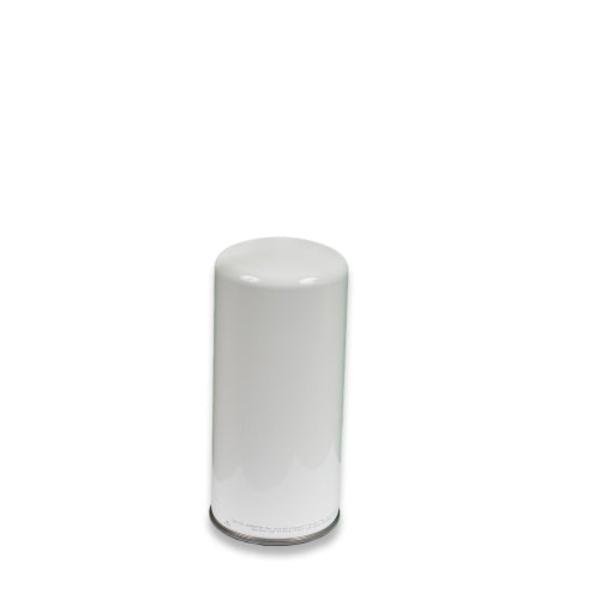

Spin-on Air Oil Separator ABAC 9057434 Clearance Manchester

The ABAC 9057434 is a maintenance part of your lubricated rotary screw compressor. In order to seal the compressor screws with the chamber, lubricate bearings and remove heat of compression oil is injected in the compression chamber with the air, the separator will filter the mix of oil and air to reinject the oil into the air end and send only the air to the downstream aftercooler.
A standard rotary screw air compressor separator assembly function is to filter and retain most of the oil inside the lubrication system, the oil concentration at the outlet of the compressor should be around a maximum of 5 ppm.
Spin-on separator are normally mounted upside-down to reduce the amount of oil lost at replacement. They normally need to be changed anywhere between 2000 hr and 4000 hr depending on the manufacturer recommendation.

• Made of new material only
• Specifications as per ABAC or better
• ISO manufacturing process
• High Quality Media
• Product photos are for reference only.
