SILICON BRIDGE RECTIFIER Clearance Cost

Ratings at 25°C ambient temperature unless other wise specified.
Single phase half-wave 60Hz,resistive or inductive load for capacitive load current derate by 20%.
Mechanical Data
Features
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Ideal for printed circuit boards
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds ,at 5 lbs. (2.3kg) tension

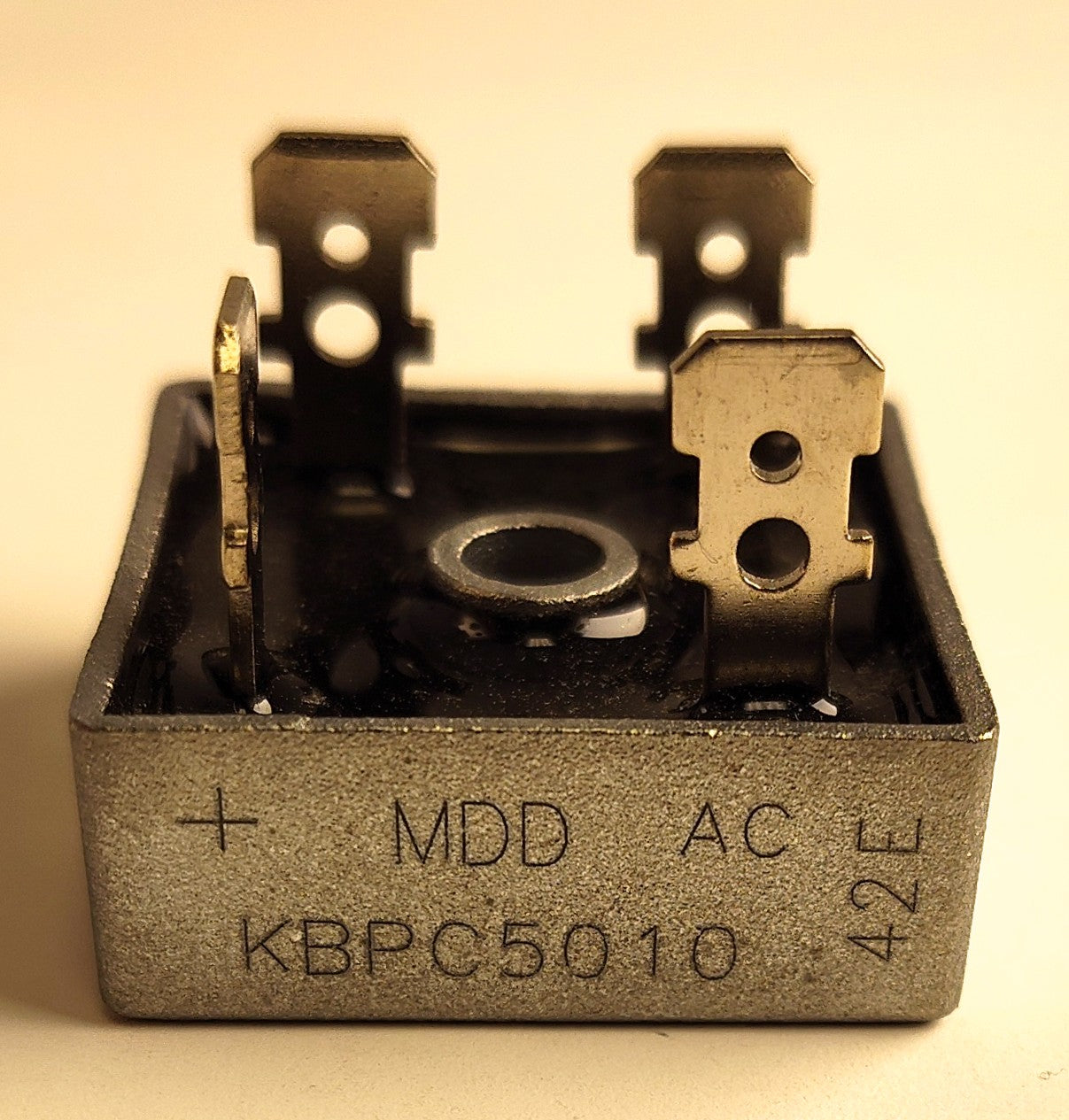

Case : JEDEC KBPC Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any

Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V
Maximum RMS voltage VRMS 30 70 140 280 420 560 700 V
Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V
Maximum average forward
output rectified current at TC=55°C I(AV) 50.0 A
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method)
IFSM 500 A
Rating for Fusing(t<8.3ms)

Maximum instantaneous forward voltage
drop per bridge element at 25.0A
VF 1.1 V
Maximum DC reverse current TA=25°C
at rated DC blocking voltage TA=100°C IR
10 μA
1.0 mA
Typical Thermal Resistance RθJA 2.0 °C/W
Operating junction temperature range TJ -55 to +150 °C
storage temperature range TSTG -55 to +150 °C
