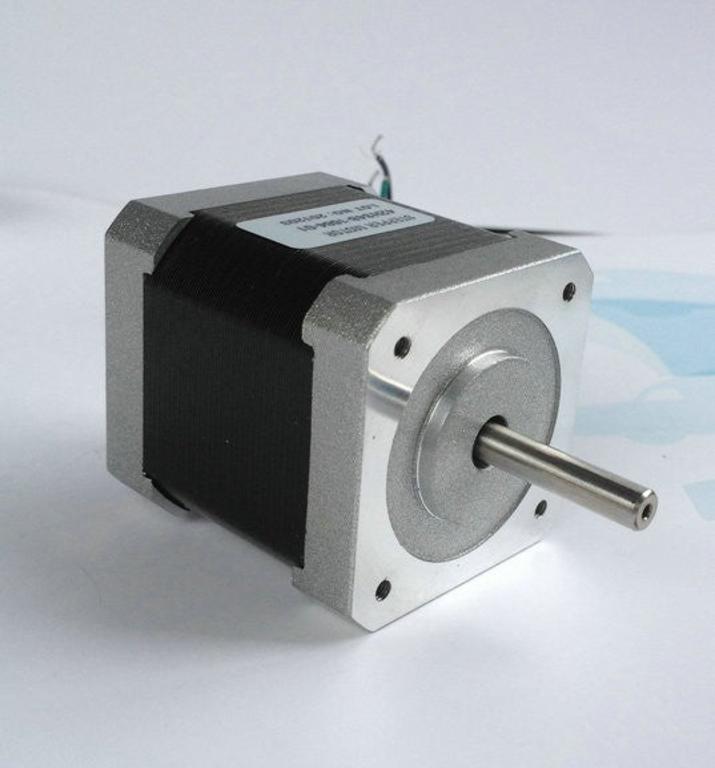

Nema17 2.5A 48mm Stepper Motor Shop For Cheap Online

Model: 42BYGHW811 2.5A

Without 4pin cable

Technical Specifications

 Part No.:                          42BYGHW811

Frame Size:                    NEMA17

Step Angle:                    1.8 degree

Voltage:                          3.1V

Current:                          2.5 A/phase

Resistance:                   1.25Ohm/phase

Inductance:                   1.8mH/phase

Holding torque:             4800g.cm  70oz-in

Rotor inertia:                  68g-cm2

Detent torque:               280g-cm

Number of wire leads:  4

Weight:                            0.34 kg

Length:                            48mm

Without:  4pin cable
