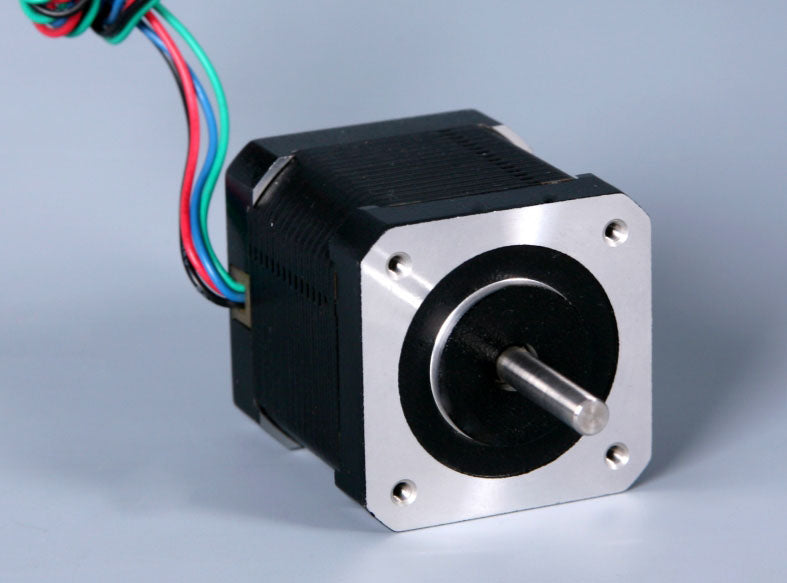

Nema17 1.2A 48mm Stepper Motor With Paypal Online

Nema17 1.2A 48mm, 2600 g.cm, 35mm length, 4-Lead 2 phase Stepper Motor, without 4pin cable

Model: 42BYGHW804

This is a Bipolar motor.

Specifications:

• Step Angle (degrees) : 1.8
• 2-Phase (4 wires)
• Rated Voltage: 3.6V
• Rated Current: 1.2A/Phase
• 5mm Diameter Drive Shaft
• Holding Torque: 48N.cm – 4.8kg.cm
• NEMA 17 form factor
• Shaft Diameter: 5mm

Dimensions: 42.3 x 42.3mm
