Lowell 10KLVC-DB 100 Watt MONO Potentiometer Linear Taper Control Decoractor Black Discount Best Place

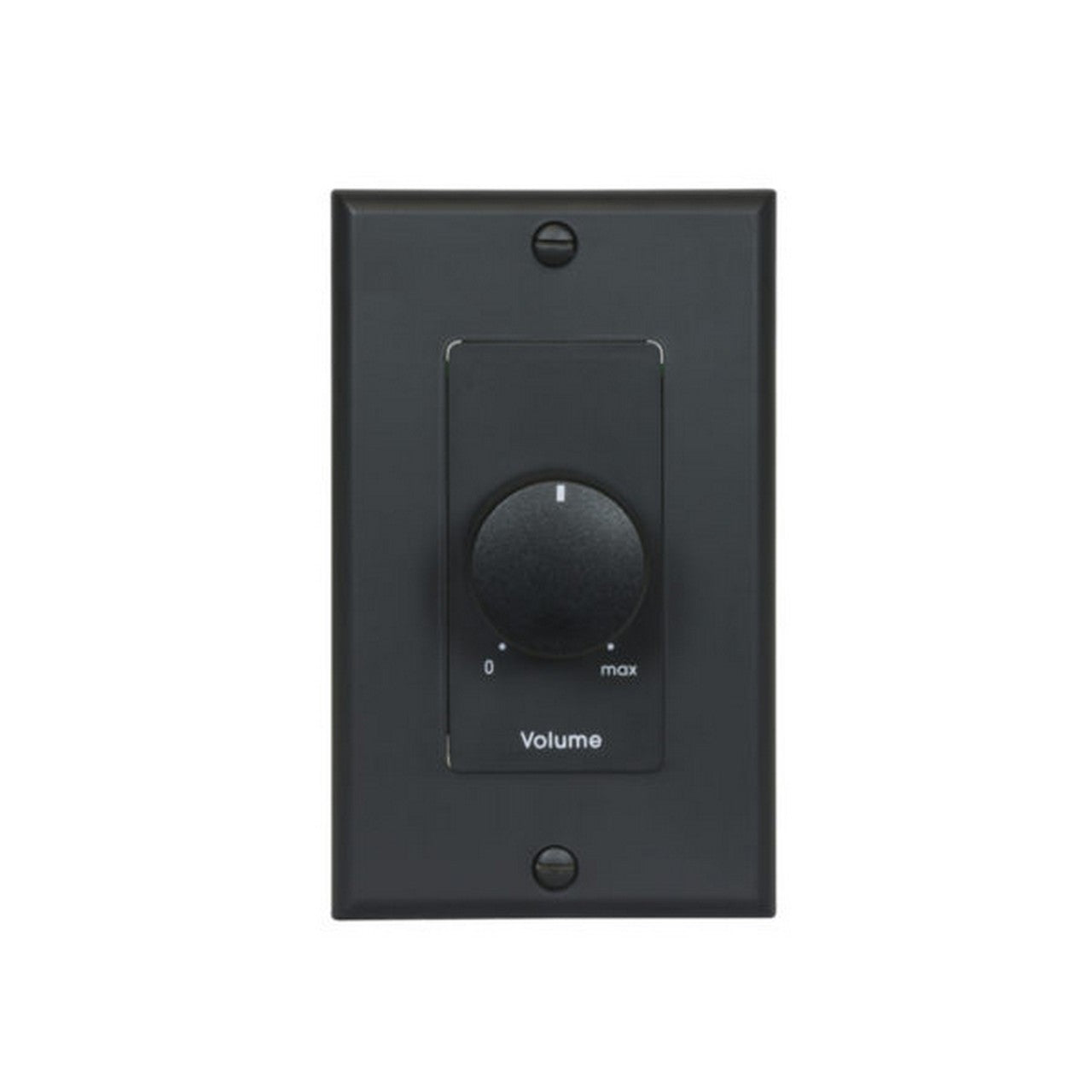

Lowell 10KLVC-DB 100 Watt MONO Potentiometer Linear Taper Control Decoractor Black

10k ohm linear taper control for single-point remote level adjustment of voltage controlled amplifiers (VCA, by others) is designed to interface directly with three-wire, 0 to 10 volt control inputs that are typical on most voltage controlled amplifiers. The 10k ohm potentiometer allows the amplifier’s control voltage to be set or adjusted from a single remote location.

Key Features

• Power Rating:- 1/2W
• Resistance:- 10k ohm
• Continuous attenuation (stops at 0/max.)
• Incremental detents for precision feel
• Use With: VCA control or audio circuit
• Termination: Phoenix-style
• Wire Capacity:- 14-gauge
• Wall Plate:- 1-gang decorator style

Technical Specifications

Power Rating
1/2W
Resistance
10k ohm
Continuous attenuation (stops at 0/max.)
Incremental detents for precision feel
Use With: VCA control or audio circuit
Activation
Rotary knob
Termination
Phoenix-style
Wire Capacity
14-gauge
Wall Plate
1-gang decorator style
Finish
Black
Fits standard E.O. box (2.125 in. min. depth)
