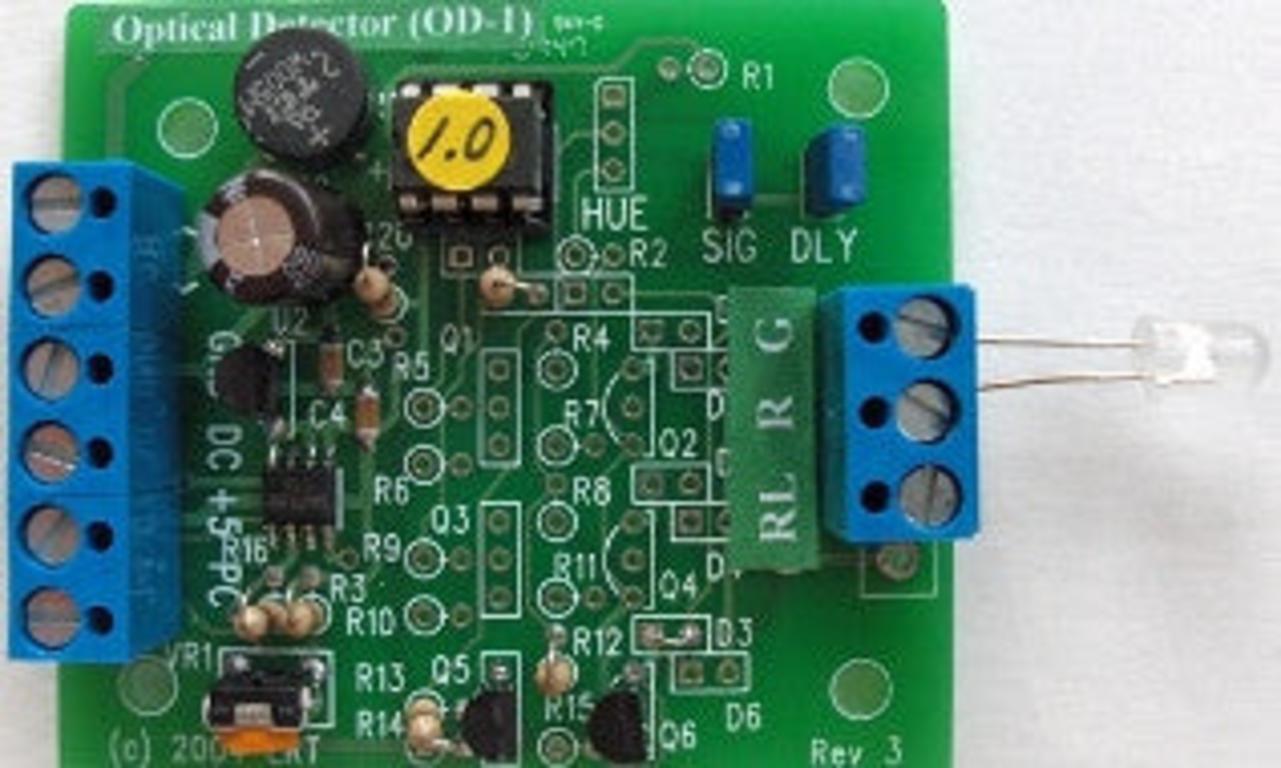

Logic Rail OD-1-IR – Optical Detector All Scale

The OD-1-IR utilizes an infrared emitter and detector (included) between the rails for detection. When the IR beam is reflected by the train the OD-1-IR will activate its red outputs. When the beam is not reflected the OD-1-IR will activate its green output. Use this version under any layout lighting condition.

2 or 4 second detector release time (selectable)
The OD-1/OD-1-IR has one red output and one green output for driving LEDs in a variety of wiring schemes (2-lead bipolar LED, 3-lead bipolar LED, innavidual red and green LEDs) and a separate red output for driving higher power devices such as lamps, relays or other external circuits
Includes a bipolar (red/green) LED and appropriate current-limiting resistors
The LED outputs are rated at 25mA
The higher power output is rated at 150mA
The OD-1-IR can be powered from 7-9V AC or 9-12V DC (such as our WT1A together with our 12VPSR); the OD-1-IR draws about 100mA with the included LED
27.95 MSRP (OD-1-IR)
