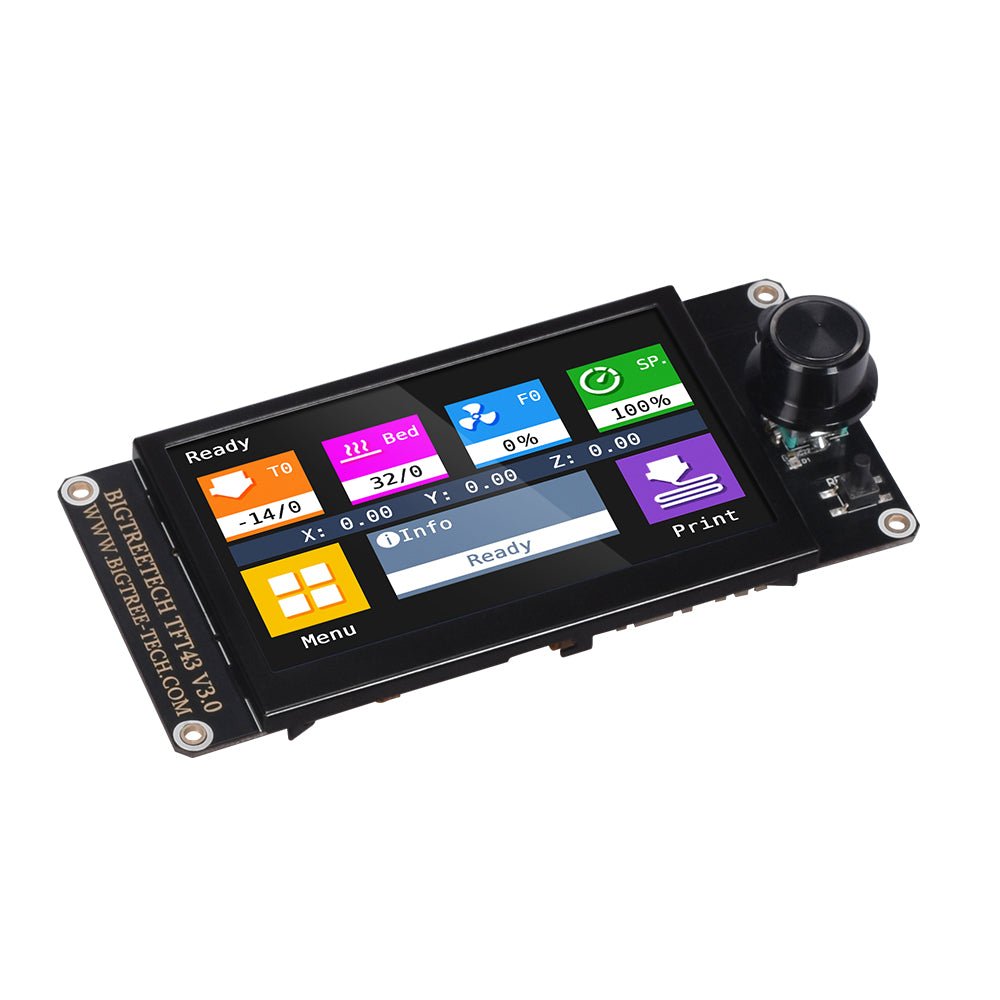

BigTreeTech TFT45 V3.0.1

Et universalt kvalitets display til de fleste printere.





<table cellspacing="0"

Parameters

BTT TFT43 V3.0.1

BTT TFT50 V3.0

BTT TFT70 V3.0

Appearance Size

143.65*67.25mm

149*77.5mm

196*100mm

Installation Size

135.65*59.25mm

141*69.5mm

188*92mm

MCU

STM32F205/207VCT6+SSD1963

STM32F205/207VCT6+SSD1963

STM32F407VGT6+SSD1963

Screen Display Area

95.04*53.856mm

110.88*62.832mm

153.84*85.776mm

Display Resolution

480（RGB）*272

480（RGB）*272

800（RGB）*480（V）

Backlight

7 white LED lights

12 white LED lights

21 white LED lights

Power Input

DC 5V

Logic Voltage of SD Card

3.3V and 5V (like: supporting motherboard with control chip MEGA2560, with stronger compatibility)
