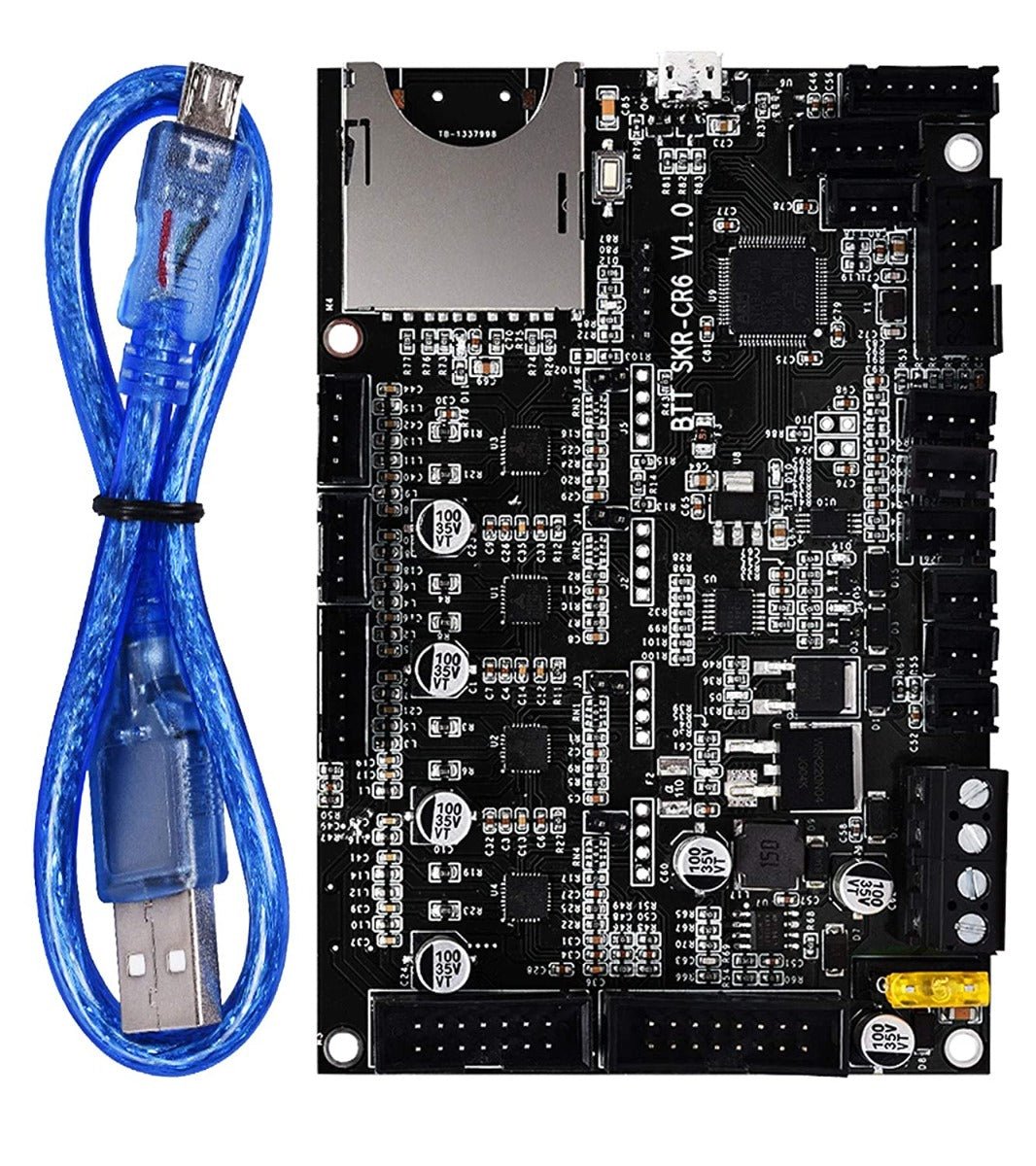

BigTreeTech – Silent Mainboard V1.0 for CR-6 SE

Ny opgraderet 32-bit Silent Mainboard med TMC2209 UART Driver til Creality CR-6 SE

Motherboard Specification:
1) Appearance size: 118.6*80mm
2) Installation size: 105.4*73.6mm
3) Microprocessor: ARM 32-bit Cortex-M3 CPU
4) Input voltage: DC12V–24V
5) TMC2209 onboard
6) Motor drive interface: X, Y, Z0, Z1, E
7) Temperature sensor interface: BED, T0
8) Display screen: BIGTREETECH-3.5 inch TFT, LCD12864, original screen
9) PC communication interface: Micro USB, easy to plug and unplug, communication baud rate 115200.
10) Expanded interface function support: detection of material. interruption, continuous operation after power failure, shutdown after finishing, adjustment of strain gauge equality.
11) Support file format: G-code
12) Support machine structure: For CREALITY CR-6 SE
13) Recommended software: Cura, Simplify3D, pronterface, Repetier-host, Makerware.

Motherboard Features:
1)The main control adopts 32-bit ARM-level Cortex-M3 series with 72MHz main frequency STM32F103RET6 chip;
2)Equipped with highly modular open source firmware Marlin2.0, which is convenient for users to DIY and reopen to avoid the worries of not being able to master the core code;
3)Marlin2.0 uses powerful development tools, Visual Studio Code integrated development environment: supports online debugging, which is more helpful for product development and performance optimization, and uses C/C++ language development, which has a low development threshold;
4)The PCB board wiring is rigorous and beautiful, and has been specially optimized for heat dissipation.
