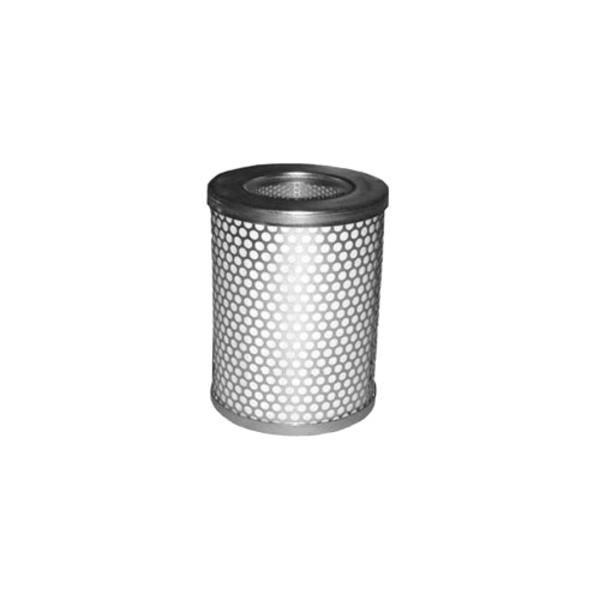

Air Oil Separator Element UNITED AIR FILTER S138D1269 Buy Cheap Wholesale Pice

The UNITED AIR FILTER S138D1269 is a key component of your lubricated rotary screw air compressor. The oil is injected with the intake air to seal the compressors screws with the chamber, lubricate bearings and remove heat of compression from the machine, after the air and oil mix is compressed by the screw a separator will filter the mix to reinject the oil into the compression chamber and send the air downstream.
A standard rotary screw air oil separator assembly should retain most of the oil inside the lubrication system and entrained in the compressed air for a maximum of 2-3 ppm.
Air/oil separator elements have a significant impact on the overall performance of a compressed air system. Excessive oil carry-over will result in higher compressor maintenance cost, higher energy consumption due to high differential pressure in downstream filtration and higher non-quality product cost.

• Made of new material only
• Specifications as per UNITED AIR FILTER or better
• ISO manufacturing process
• High Quality Media
• Product photos are for reference only.
