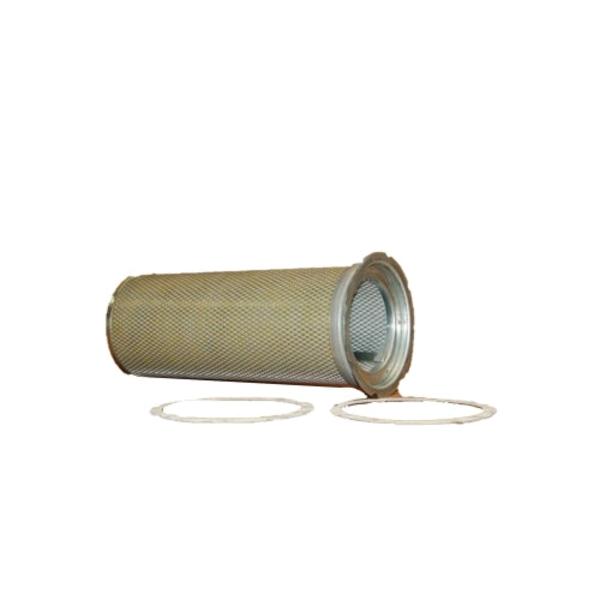

Air Oil Separator Element SULLAIR 47054 Outlet 2025 New

The SULLAIR 47054 is a key component of your lubricated rotary screw air compressor. The oil is injected with the intake air to seal the compressors screws with the chamber, lubricate bearings and remove heat of compression from the machine, after the air and oil mix is compressed by the screw a separator will filter the mix to reinject the oil into the compression chamber and send the air downstream.
The element is designated with a maximum velocity rating, line pressure can affect the velocity of the air inside the separator tank therefore it is really important to select the right part of your air compressor and your application. A high quality separator element will be size with some safety factor in order to function properly at pressure slightly under-rated capacity.
Air/oil separator elements have a significant impact on the overall performance of a compressed air system. Excessive oil carry-over will result in higher compressor maintenance cost, higher energy consumption due to high differential pressure in downstream filtration and higher non-quality product cost.

• Made of new material only
• Specifications as per SULLAIR or better
• ISO manufacturing process
• High Quality Media
• Product photos are for reference only.
