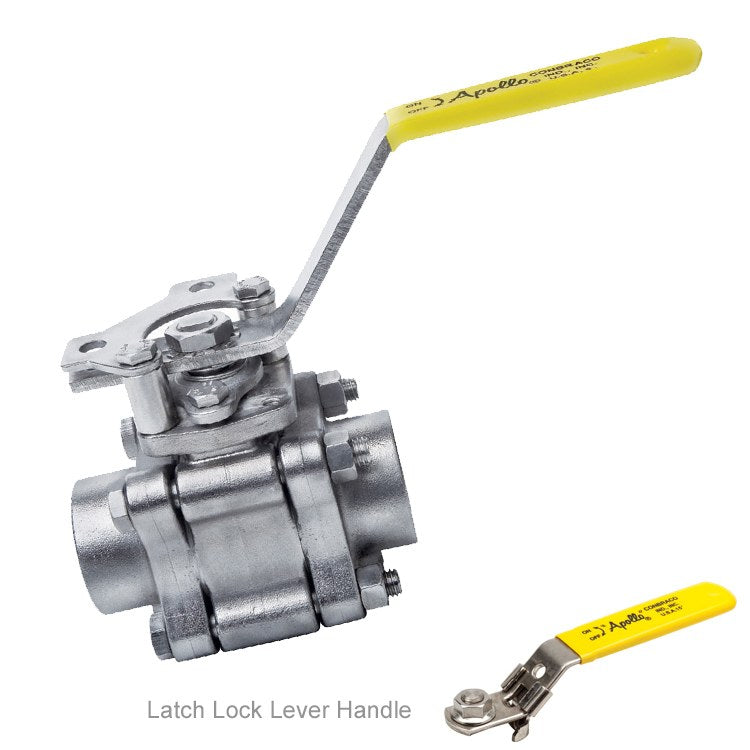

86A-100 Series 3/4″ Three-Piece Female Full Port Stainless Steel Ball Valve Cheap Purchase

The Apollo 86A-100 Series three-piece, full port ball valve features stainless steel construction with a standard lever handle. Rated for 1500 CWP (psig) and 150 psig saturated steam. Features female NPT threads for use with male threaded pipes. Vacuum service to 29 inches Hg. This 3/4″ valve is MSS SP-110, NACE MR1075 (2000), and MR0103 (2012) compliant.

• Three-piece construction with enclosed fasteners
• Full port
• Stainless steel trim and hardware
• Swing-out center section
• Pressure balanced solid ball
• Compression controlled RPTFE gaskets
• Anti-blowout one piece bottom entry stem
• Two-position locking
• Adjustable multi-piece PTFE “V” style packing
• Fully machined ISO 5211 mounting
• Cast bosses on the center section and end caps for bleed and drain ports
