815A 1/8″ – 2″ Self-Open Right-Hand Die Head Clearance 2025

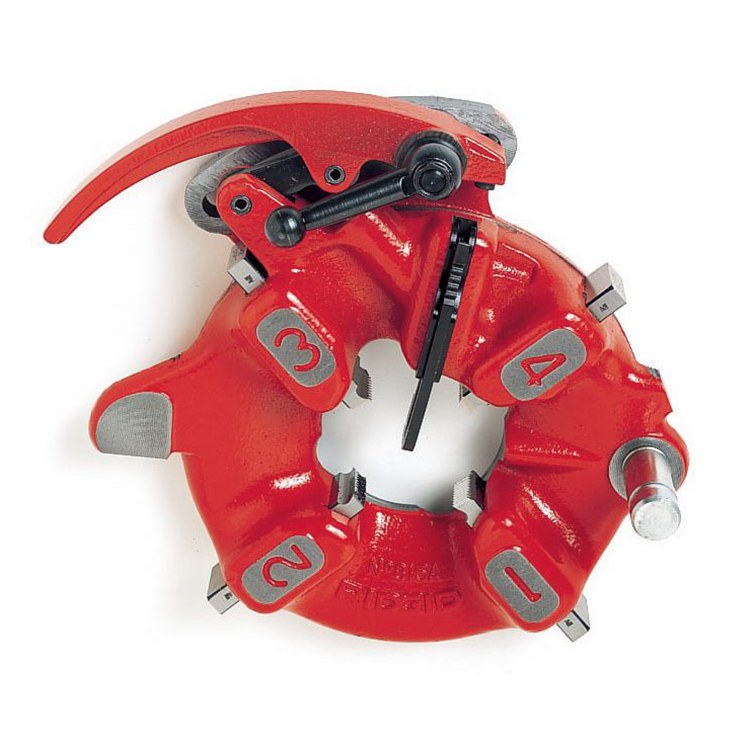

This 815A self-opening, right-hand die head fits all RIDGID power threading Machines. The quick-opening design allows you to quickly change between sizes without the need of tools. Opens automatically after completion of the proper thread length.

• Self-Opening (SO): Automatic release for repeatable number of threads
• Thread direction: right-hand
• Oil through head: yes
• Dies used: universal
• Pipe capacity: 1/8″ – 2″ (3 mm – 50 mm)
• Bolt capacity: 1/4″ – 2″ (6 mm – 50 mm)
• Weight: 13 lbs (5.7 kg)
