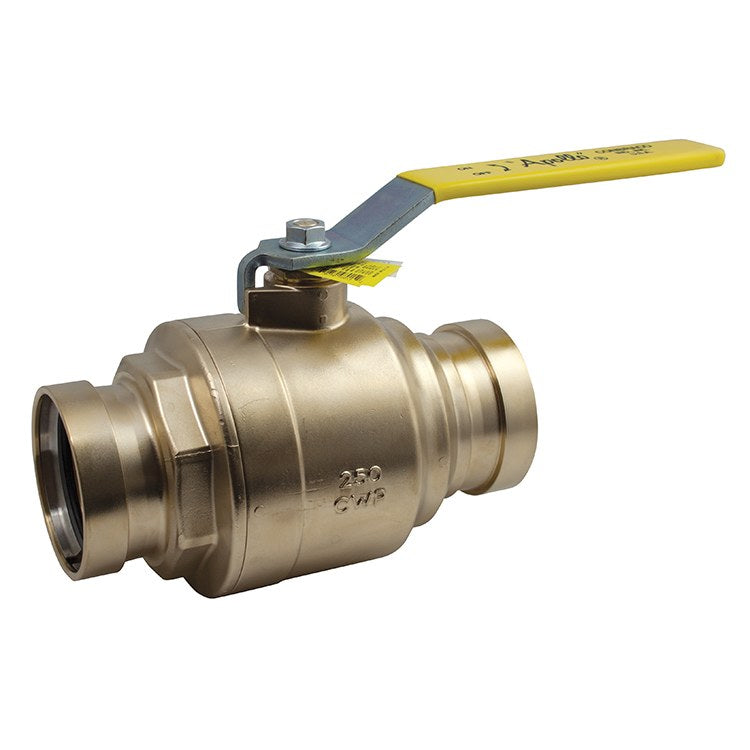

77V Series 3/4″ Two-Piece Full Port Press End Brass Ball Valve Outlet Websites

The APOLLOXPRESS 77V Series ball valve is ideal for installation in heating, cooling, and non-potable plumbing. This 3/4″ two-piece full port brass ball valve features Leak Before Press technology and a 250 psig maximum working pressure. Proudly made in the USA.

Approved applications includes water, chilled and hot (33 degrees F to 250 degrees F), and hydronic heating (90% glycol max), low-pressure steam (15 psi max). Not suitable for flammable gas service. Not compatible with soft, annealed copper tubing. Not intended for potable water.

• Two-piece, heavy pattern forged design
• Full-port flow
• Adjustable stem packing gland
• Fast, reliable, economical press installation
• Ridgid XLC press tool compatible (2-1/2″ – 4″)
• Leak Before Press technology
• Blow-out proof stem
• Corrosion-resistant materials
• Silicone-free assembly
• 100% factory tested
• ARRA compliant
• Directive 2011/65/CE (RoHS)
• IAPMO IGC-157 Ball Valves (2-1/2″-4″)
