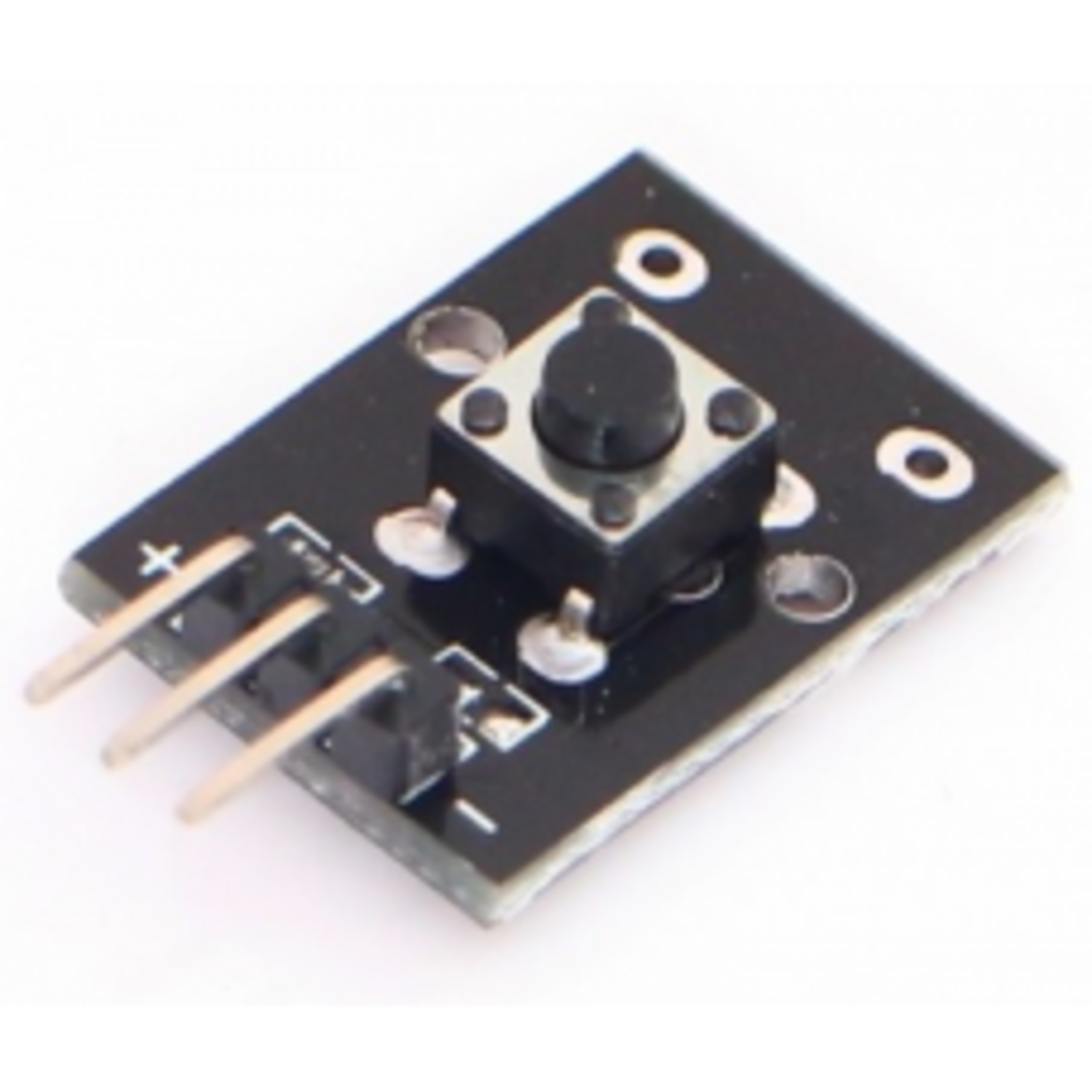

3 pin Button Key Switch Module Tumblr

This is a simple small switch which can easily be mounted onto a solderless breadboard. No need for resistors as they are already included on the board.

Max current & voltage: 50mA 12VDC

Contact Resistance : 50mΩ max (initial)

Insulation Resistance: 100MΩ (min. DC 250V)

Dielectric Strength : AC250V(50/60Hz for 1minute)

Electrical Life:100,000cycles

Environment temperature: -25°C – 105°C

Operating Force: 1.80 – 2.25 N (±0.20N)

Seal temperature: ~260°C
