Koyker OEM Cylinder Part 662050

3″ Cylinder Packing Seal Kit works with certain Koyker front-end loaders.

• Seal kits DO NOT work on other brands of loaders or products.
• Seal kits are manufactured specifically to fit Koyker front-end loaders.

NOTE: This product does not qualify for returns. Confirm correct seal kit by comparing pictures, checking owner’s manual AND by measuring the inside diameter of the barrel cylinder tube and chrome shaft rod weldment.

Complete kit with all seals needed to service (1) 3” cylinder.

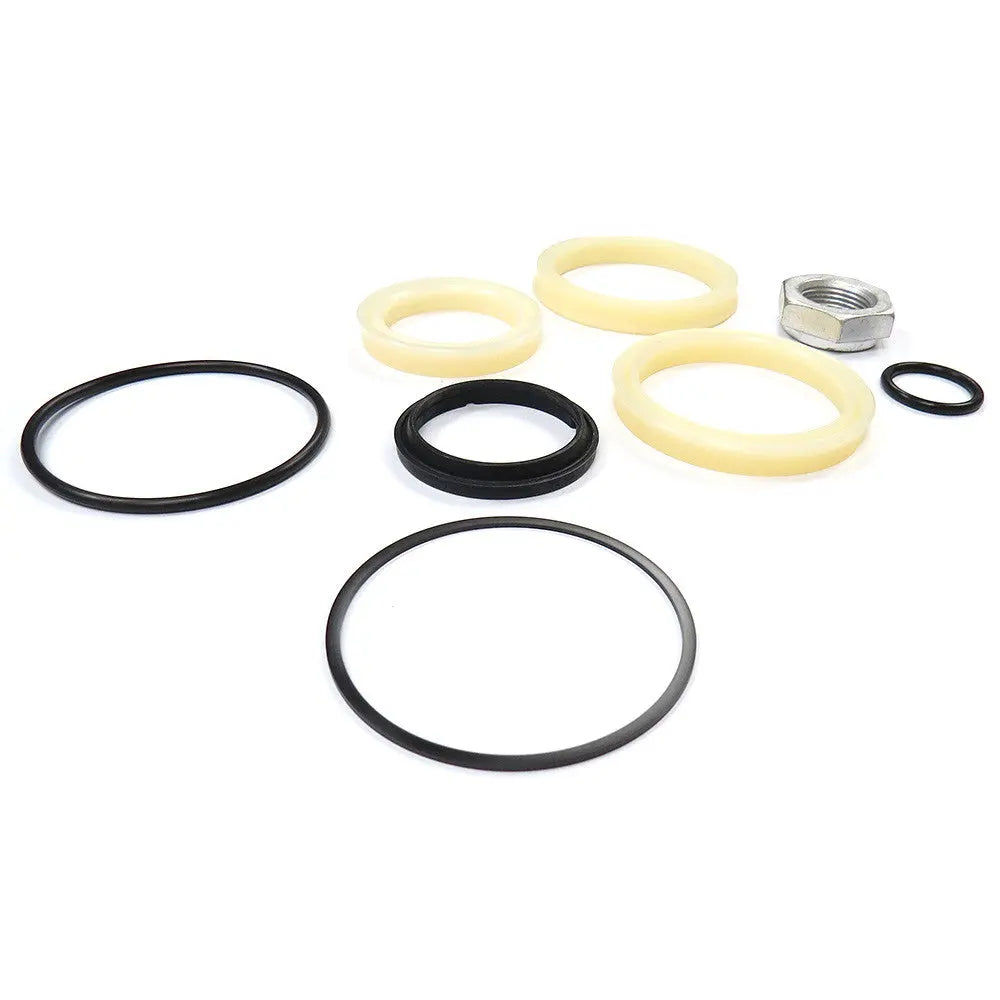

This kit includes the following pieces:

Part Number: K662050

• (1) 3″ Gland “O” Ring
• (1) 3″ Backup Ring
• (1) 1 3/4″ U-Cup Rod Seal
• (1) 1 3/4″ Rod Wiper
• (2) 3″ U-Cup Piston Seals
• (1) 1″ Rod “O” Ring
• (1) 1″ Lock Nut

Related Products:

K663322: 3” Cylinder Gland Kit (1 3/4″ Shaft)
K663323: 3” Cylinder Piston Kit

Loader Models:

Koyker Loader 510
Koyker Loader 545
Koyker Loader 585 (Loader may also utilize 3.25″ Cylinder Seal Kit w/1.75″ Shaft)
Koyker Loader 645 (Loader can may utilize 3.5″ Cylinder Seal Kit)
Legend Loader 675 (Loader may also utilize 2.75″ Cylinder Seal Kit w/1.75 shaft)
Koyker PRO Loader 1545 (Loader may also utilize 2.75″ Cylinder Seal Kit w/1.75 shaft)

This product does not qualify for returns. Please make sure this product is the correct size and will work for your equipment before purchasing.

Your equipment may consist of NON-OEM parts and may not coincide with product manuals. If you have questions or concerns, please contact our Koyker Customer Service Team at 1-800-456-1107.

Maintenance

HYDRAULIC CYLINDERS
INSPECTION AND MAINTENANCE:
Periodically check all hydraulic system connections to insure a leak-free condition. Also, be certain to maintain proper fluid levels in the tractor hydraulic system as in accordance with the method and frequency recommended in the tractor operator’s manual. Use only hydraulic fluids recommended for your tractor hydraulic system by the manufacturer.

Keep hydraulic system clean. Be certain to maintain recommended oil filter service intervals. All internal surfaces of the hydraulic system on your loader have been factory cleaned, inspected, and plugged with protective caps prior to shipment. Be certain all protective caps are securely in place until hydraulic system assembly is completed.

Care must be taken with your loader cylinders. Nicks, scratches, rust or other shaft damage can cause seal damage resulting in cylinder leakage and poor performance.

IMPORTANT:
Read these service tips before beginning assembly of cylinder gland or piston.

1. Keep seals clean from the time they are removed from package until they are installed.
2. Clean the groove or bore into which the seal is to be fitted before installing the seal.
3. Never touch the seal lip in handling. Always pick up the seal by its outer member.
4. Inspect each seal lip carefully for nicks, scratches, and dirt at time of installation. If dirty, use a soft, clean cloth and carefully wipe off seal. DO NOT wipe seal with fingers as this only imbeds dirt in the seal.

Never clean rubber related seals with a mineral based solvent! Clean rubber seals in denatured alcohol or non-mineral based solvents only.

NOTE:
Seals can be made more pliable and easier to install, if first heated in hydraulic oil to 160 degrees F. Never use direct heat on any seals.
