Name: 2x3A DC Motor Driver Carrier Board for UNIHIKER M10 Pay With Paypal Online
SKU: 2x3A DC Motor Driver Carrier Board for UNIHIKER M10 Pay With Paypal Online-940
Availability: InStock

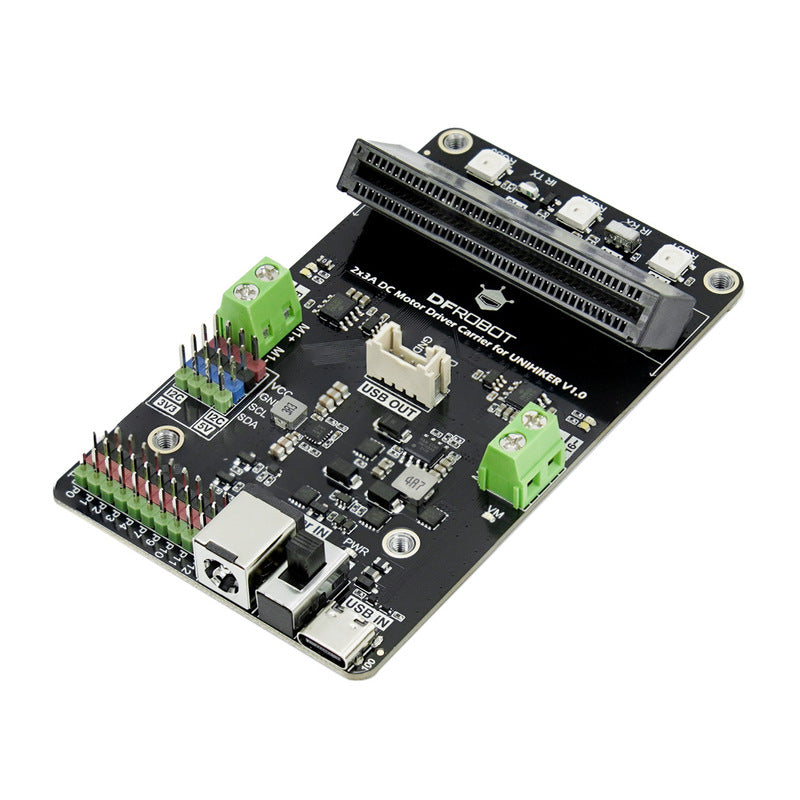

##Introduction This motor driver carrier board is a specially designed carrier for the UNIHIKER M10, featuring a tilted edge connector slot that provides the screen with the optimal viewing angle. It integrates a dual DC motor drive that can be powered separately, offering flexible power supply options including USB, DC head, and terminal block. The board also includes onboard RGB lights and infrared transmission and reception functions, enhancing its playability and versatility. It extends 10*3Pin ports and 4*I2C ports, supporting 5V I2C for stronger compatibility and making it highly expandable.Additionally, all spare IOs are led out, and multiple indicator lights (for power, motor power, and motor signal) are included, making it convenient for debugging. The carrier can also power the UNIHIKER M10 via a U-shaped USB adapter cable. In combination with DFRobot’s powerful Gravity product system, this carrier opens up unlimited possibilities for creative and functional projects with the UNIHIKER M10.Figure: Power Supply Method Explanation ##Specification Power interface: DC2.1 interface: 6~12V TypeC interface: 5VWorking voltage: 3.3VI/O expansion header: 3Pin: 10*I/O ports, 3.3V 4Pin I2C: 3*3.3V, 1*5VMotor interface: DC Motor x2USB adapter port: HY2.0 4Pin interface, used to power the UNIHIKERPower switch: controls the power supply of the USB adapter port and the motor driveMounting hole: M3x4Onboard components: WS2812 RGB light x3 Infrared transmitter x1 Infrared receiver x1Size: 98×58.5mm / 3.86×2.30inWeight: 70g ##Documents Product wikiFunctional DiagramTutorialExample 1: Using the On-board RGB LEDExample 2: Using the On-board IR TX/RXExample 3: Using the On-board Motor DriverExample 4: Use of External 3Pin Sensor-DHT11Example 5: Use of External 3Pin Actuator – ServoExample 6: Use of External I2C Sensor – Ultrasonic SensorFAQSchematic DiagramDimensional Drawing ##ShippingList Motor Drive Carrier ×1U-shaped Type-C to HY2.0-4P cable x1DC Barrel Jack Adapter – Male x1
