Name: 2x2A DC Motor Shield For Arduino Hot Sale Cheap Pice
SKU: 2x2A DC Motor Shield For Arduino Hot Sale Cheap Pice-988
Availability: InStock

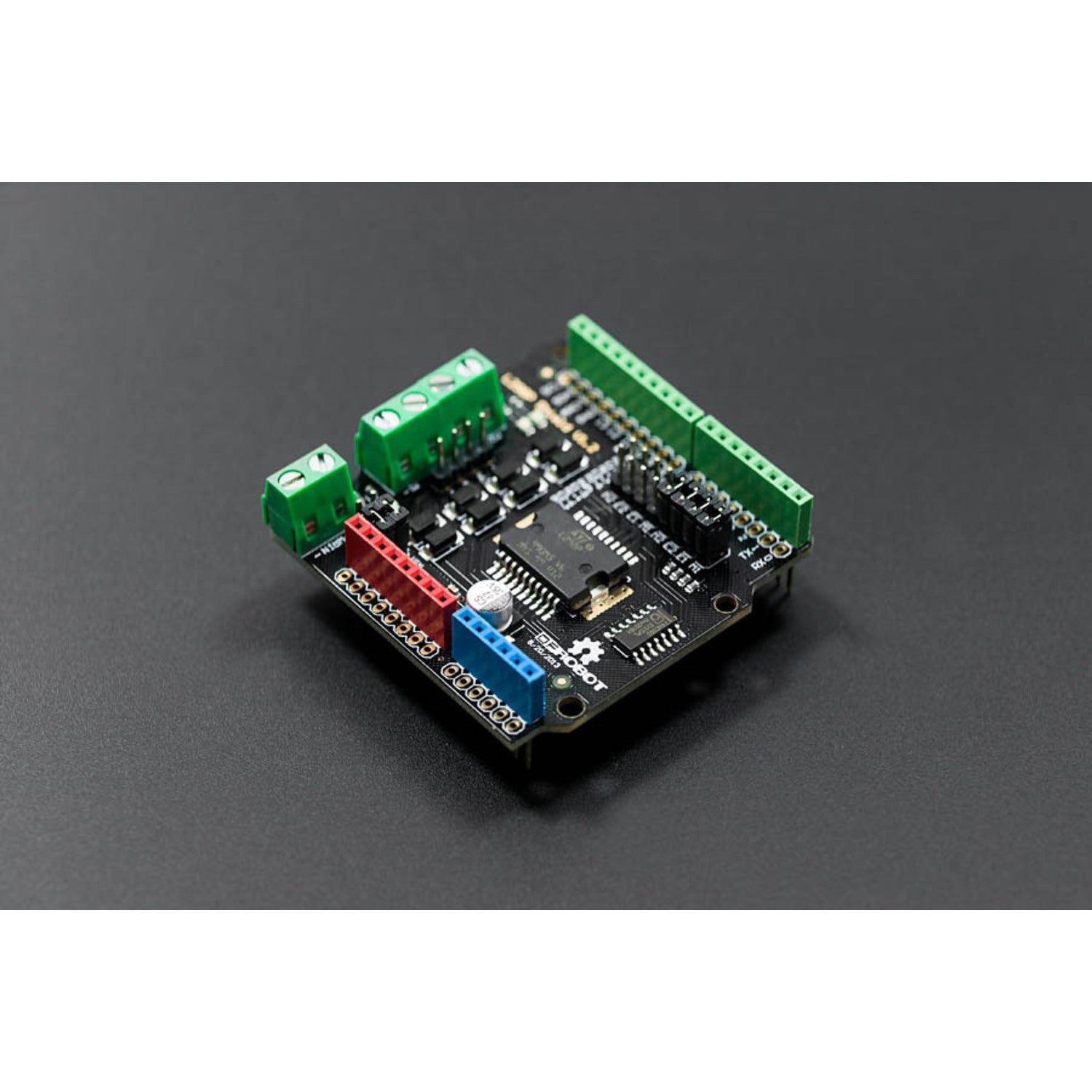

Arduino product family is a great learning platform for electronics, programming and robotics. But most projects at some point require mobility. This Arduino motor shield allows for motor control with Arduino right away. Stack up this shield on your controller and drive 2 DC motors with higher power requirements. Depending on the motor of choice, you can make it fast or handle a higher payload. This Arduino Motor Shield (2A) uses L298P chip which allow to drive two 7-12V DC motors with maximum 2A current. This arduino motor shield can be directly mounted onto standard Arduino Uno and Arduino Mega.

SPECIFICATIONS

Logic Control Voltage: 5V (From Arduino)
Motor Driven Voltage: 6.5~12v(VIN Power Supply),4.8~35V (External Power Source)
2 way motor drive
Logic supply current Iss: ≤36mA
Motor Driven current Io: ≤2A
Maximum power consumption: 25W (T=75°C)
Up to 2A current each way
Pin 4,5,6,7 are used to drive two DC motor
Support PWM speed control
Support PLL advance speed control
Size: 55x55mm (2.2×2.2 in)

DOCUMENTS

WIKI (Arduino Motor Shield (L298N))
Schematic
L298 datasheet

SHIPPING LIST

2A Motor Shield For Arduino x1

PROJECTS

Initial testing from (RobotProjects)
Mop robot for wifey (Jerome)
Robot Bluetooth Controlled chassis (Matt Roy)
